# What are the installation do’s and don’ts for electrical engineers working with Verv isolators?

### When installing Verv 3-phase or single-phase isolators, it’s important to follow precise guidelines to ensure device safety, functionality, and long-term reliability. Below are the key do’s and don’ts in the correct installation sequence.

#### **Do’s**

- **Always read the user manual first** before beginning installation.
- **Ensure the electricity supply is turned off, isolated & locked off** at the source before handling any electrical components.

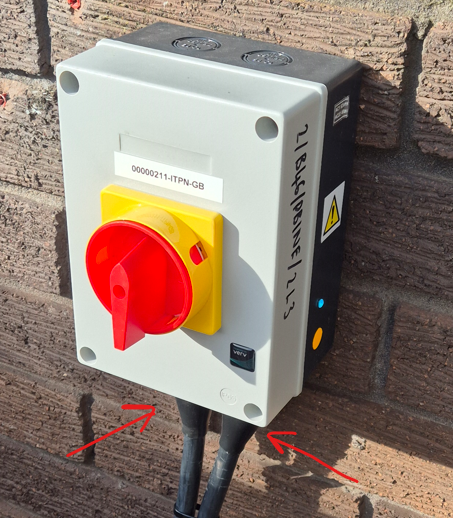

### **Only use the two bottom drill-through holes** for the 3-phase isolator.

### ![](https://marketing.verv.energy/hs-fs/hubfs/Rich%20Text%20Pasting/google-1752773796197.png?width=453&height=518&name=google-1752773796197.png)

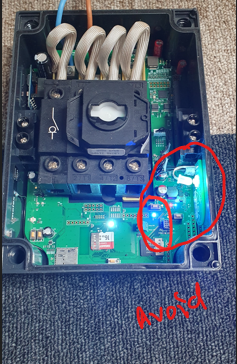

- **Avoid running wires on the right side** of the 3-phase isolator. This area contains the **LED and touch sensor**, which must remain unobstructed.

![](https://marketing.verv.energy/hs-fs/hubfs/Rich%20Text%20Pasting/google-1752773897021.png?width=237&height=364&name=google-1752773897021.png)

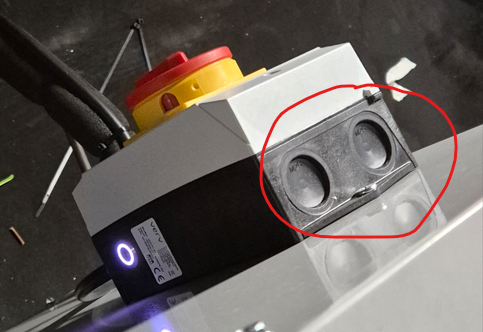

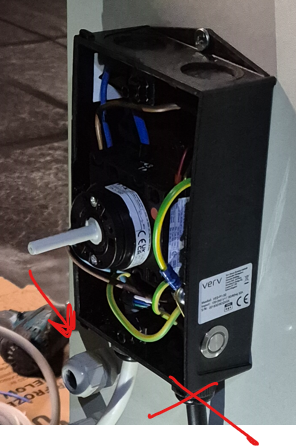

- For the **single-phase isolator**, use the **top two** and **bottom left** drill-through holes for wiring.
- The **bottom left hole** is close to the **user button**, so care is needed during setup.

![](https://marketing.verv.energy/hs-fs/hubfs/Rich%20Text%20Pasting/google-1752773949171.png?width=483&height=332&name=google-1752773949171.png)

![](https://marketing.verv.energy/hs-fs/hubfs/Rich%20Text%20Pasting/google-1752773963272.png?width=296&height=447&name=google-1752773963272.png)

- **Always use protective plastic shielding** when installing **metal glands**.
- For **25mm holes**, place the plastic shield on the **bottom outer side wall** of the isolator and mark the holes accordingly.
- Use a **pilot drill first**, then proceed with a **circular hole cutter or step drill bit** for final hole sizing.

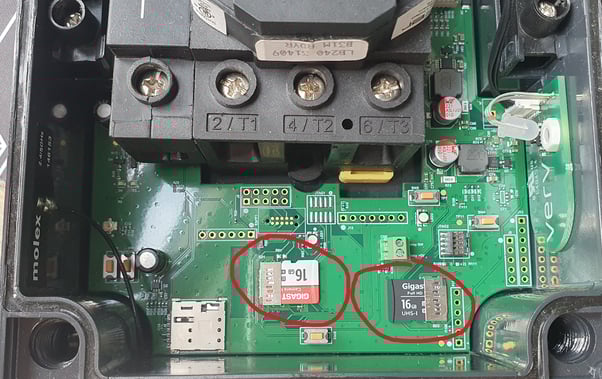

- Before wiring the 3-phase isolator or putting the shield inpalce, **ensure the SD cards are properly secured** inside the unit.

![](https://marketing.verv.energy/hs-fs/hubfs/Rich%20Text%20Pasting/google-1752774002330.png?width=602&height=379&name=google-1752774002330.png)

#### **Don’ts**

- **Do not remove the SD cards** from the device under any circumstance.
- **Do not use a power drill or impact driver** on the **screw terminals** or the **device enclosure**—this can cause internal damage or compromise the integrity of the housing.
