LED Lights and what do they mean

This is an article that summarises the various LED light sequences that have been built into the Verv products. This will help us remote manage any issues you may have with devices.




Normal Mode LED Sequence

1. Flashing Red (startup sequence)

2. Flashing Red for debugging panic mode (only available in the latest software

3. Flashing purple

4. Solid purple

5. Solid white

LED Sequence (STM32 - LED on the bottom right side of the PCB)

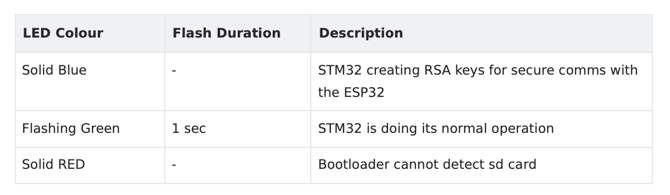

Screenshot 2025-02-28 at 17.08.21

LED Sequence (ESP32 - Enclosure LED)

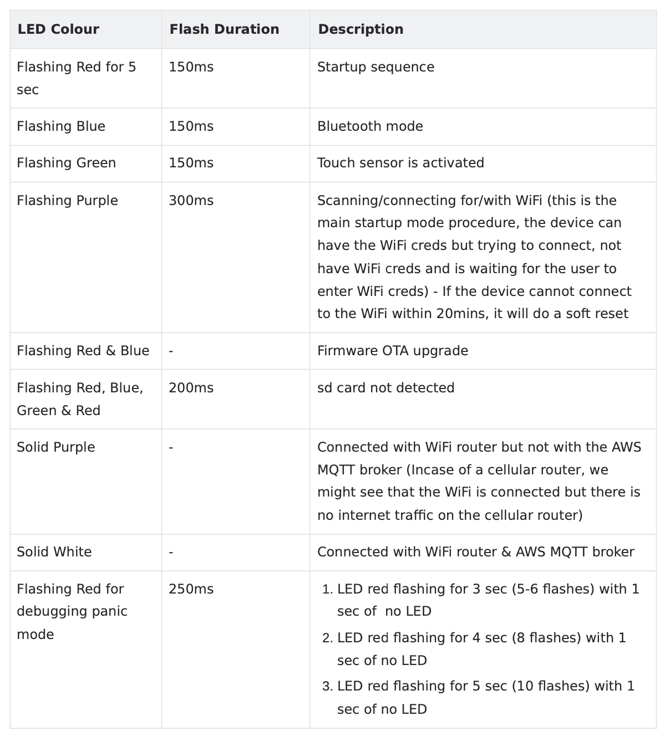

Screenshot 2025-02-28 at 17.06.44

User Button/Touch Sensor

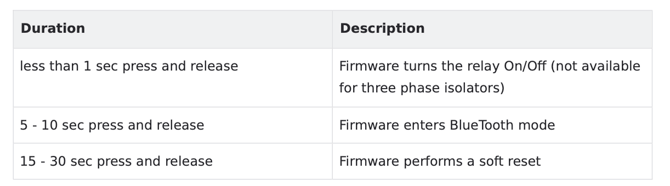

Screenshot 2025-02-28 at 17.11.07

---------------

Guide for Users/Support staff

Have you check the LED status?

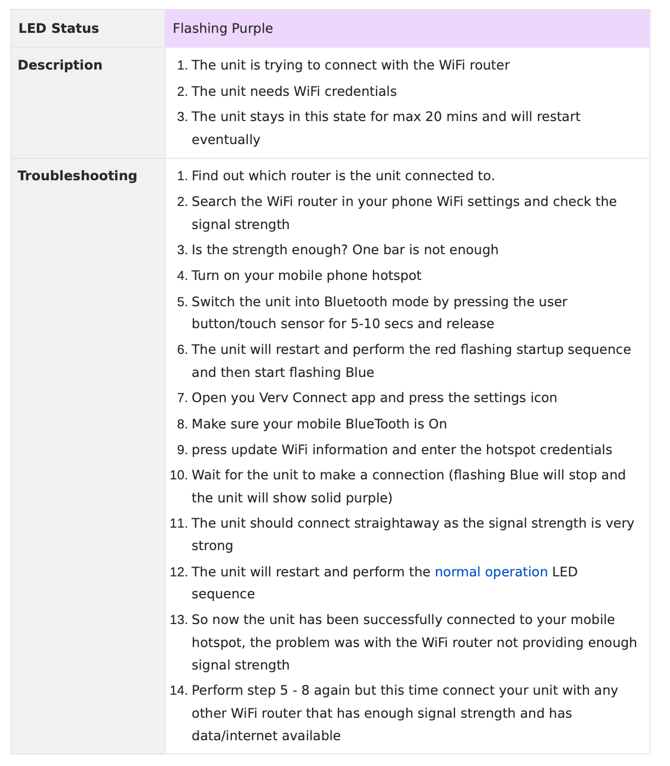

Screenshot 2025-02-28 at 17.12.08

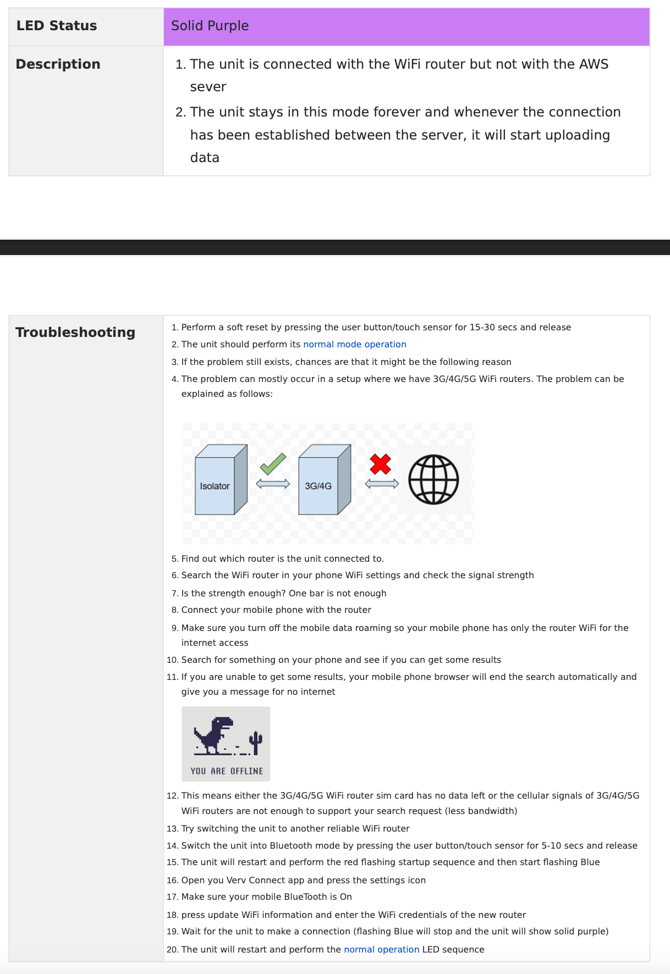

Screenshot 2025-02-28 at 17.12.54

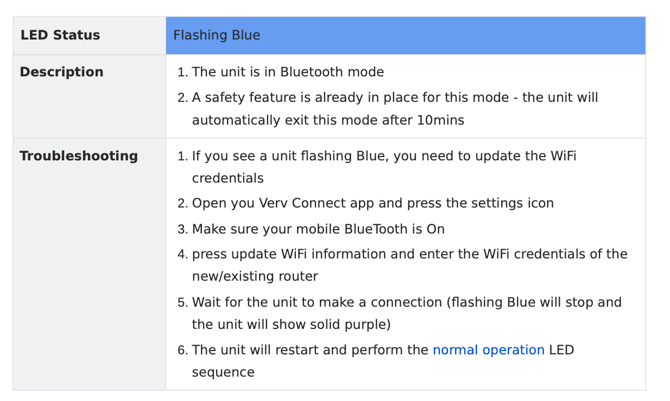

Screenshot 2025-02-28 at 17.13.15

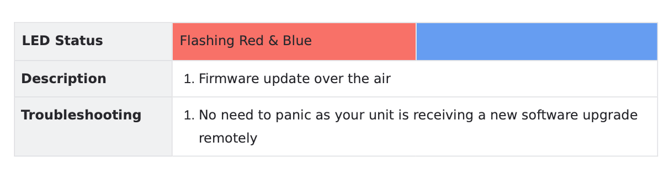

Screenshot 2025-02-28 at 17.13.53
